NEW! KarDiaN Vitamin C "ADD CBF"
with added Clean Blend & Clean Low Pass Filter
handmade in Japan
The Big Muff is one of the most popular fuzz pedals in the world. The vintage Big Muff pedal has a fascinating sound that has captured the hearts of players. However, one of the problems with vintage guitars is that some of the specifications are not suitable for today's playing environment. We obtained a rare "Ram's Head" model from Guild, and analyzed it. From there, we set out to define what a modern "Big Muff" should be. The C6H806 / Vitamin C is equipped with five elements consisting of transistors and FETs, instead of the usual four. The C6H806 / Vitamin C has five elements consisting of transistors and FETs, instead of the usual four, which means that even when the gain is turned down, the sparkling highs are not lost, giving you a fuzz sound that you have never experienced before. In addition, the use of two EQs, which is rare for fuzz pedals, allows for even more flexible sound creation. In addition, the 5 elements split the gain up so it is less affected by the buffer pedal connected to the first stage, allowing you to choose the layout that best suits your modern board system. 5 elements convey the DNA of "Vintage Big Muff" and the sensitive specifications that modern guitarists demand. The five elements convey the DNA of the "Vintage Big Muff" and the delicate specifications that modern guitarists demand.
- SPECS -
• Input impedance：1MΩ
• Output impedance：10kΩ
• Control : Volume、Fuzz、Treble、Bass
• Switching：True Bypass
• Connecting：1/4 inch standard phone jack x 2 (input, output)
• Power supply method：9V center minus DC power
• Current consumption : 3mA
• Dimension : Width (W) 72 mm, Depth (D) 121 mm, Height (H) 55 mm (including protrusions such as foot switches and jacks)
• Weight : 286g
• EAN : 4589825520048
• Accessories : Warranty card
KarDiaN Vitamin C "ADD CBF"
KarDiaN Vitamin C "ADD CBF"

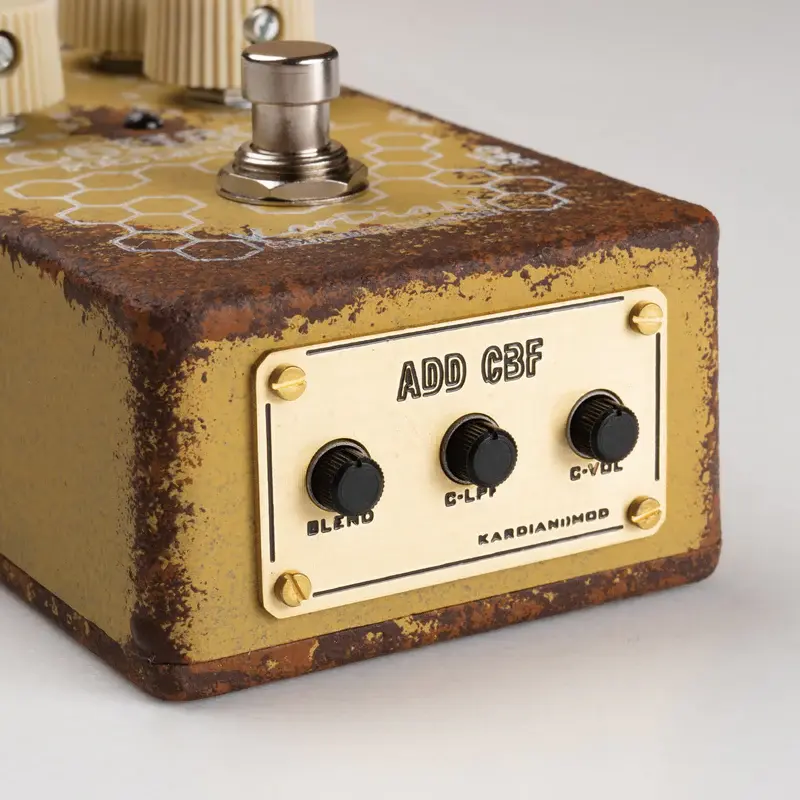

A special modification that applies a Clean Blend & Clean LPF to the pedal, which was specially produced for musicians who ordered a clean low-pass filter, not just a plus one for the original sound . This is finally an official product. By blending a high-quality clean booster into the effect section, you can adjust the attenuation of the original sound that occurs when it passes through the effect. In addition, by adjusting the LPF (a mechanism that passes low and cuts high) installed on the clean side, it is possible to blend only the low components of the original sound. The low band, which controls the pitch and the core of the sound, can be used to create a clean original sound, and the mid to high components that best fit the effect can be created using the original effector sound. A feature of this "ADD CBF" module is that it uses LPF to achieve optimal sound communication without masking each other.
With the new sound blend of KarDiaN's Vitamin C and ADD CBF, you can musically add the original sound component that was previously lost when using effectors. - SPECS - • Input impedance: 1MΩ • Output impedance : 10kΩ •Front control: Volume, Fuzz, Treble, Bass •Side control: Blend, Clean-LPF, Clean-Vol • Switching method : True bypass • Connection terminal : 1/4 2 inch standard phone jacks (input, output) • Power supply method : 9V center negative DC power supply • Current consumption : 13 mA • Dimensions : Width (W) 72 mm, Depth (D) 125 mm, Height (H) 55 mm (including protrusions such as foot switches and jacks) • Weight: 339g • JAN : 4589825520338 • Accessories : Warranty - DISCLAIMER -Specifications are subject to change without notice due to product improvements. Also, the image is a sample. Please note that the paint finish may vary slightly from piece to piece.
